HE-Lab: Harsh Environment Laboratory

HE-Lab: Testlabor für Sensoren unter extremen Umgebungsbedingungen
© Fraunhofer IPM
Im Harsh Environment Laboratory testen wir Sensorkomponenten und Sensorsysteme unter extremen Bedingungen.

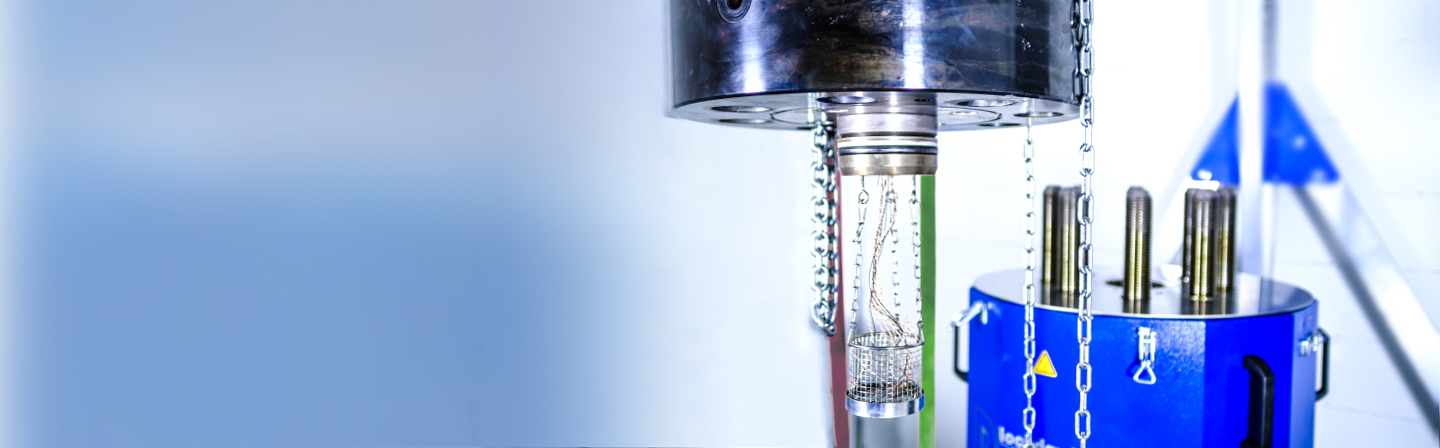

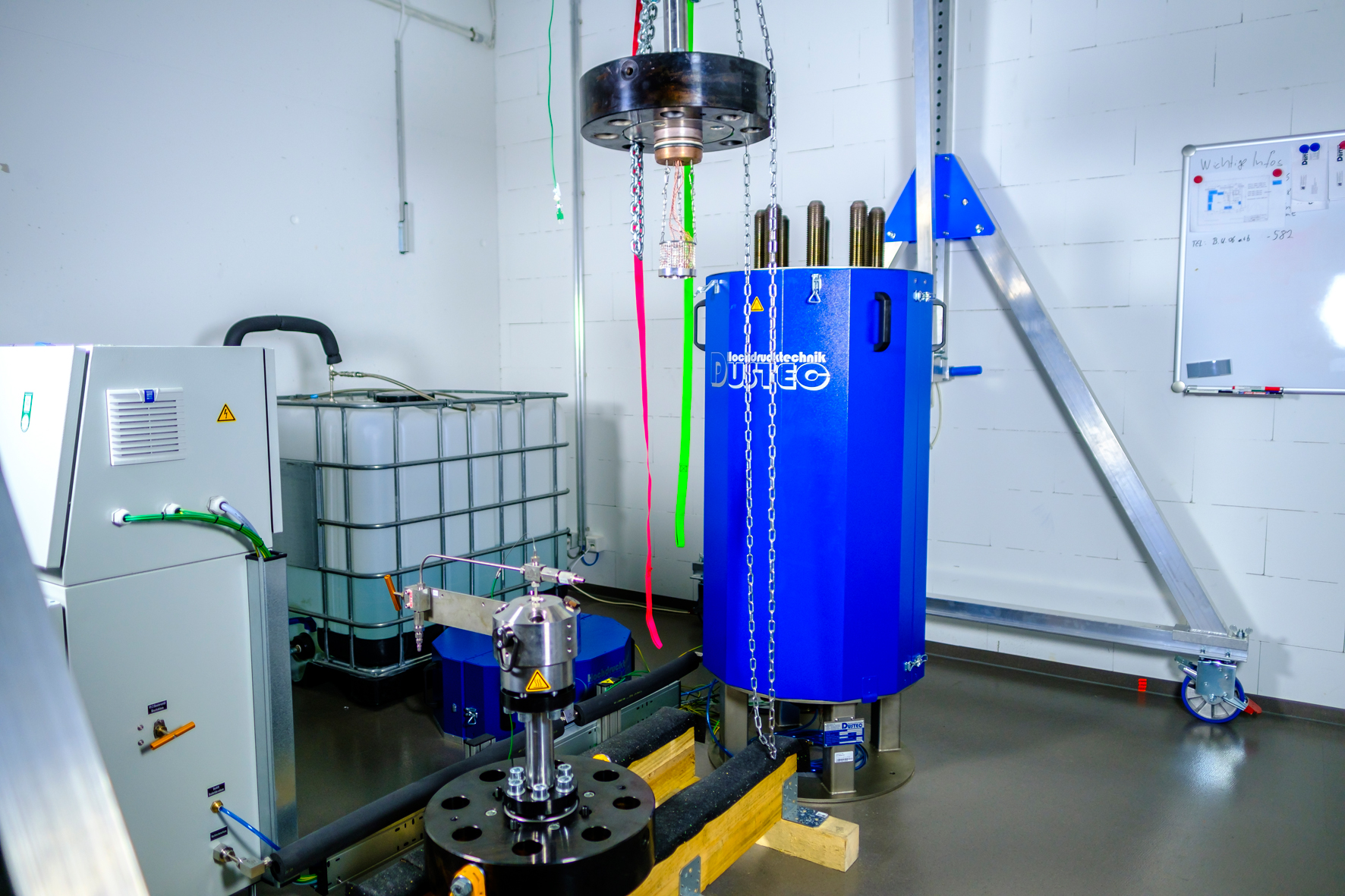

HE-Lab: laboratory for sensor testing under extreme thermal stress and pressure
© Fraunhofer IPM

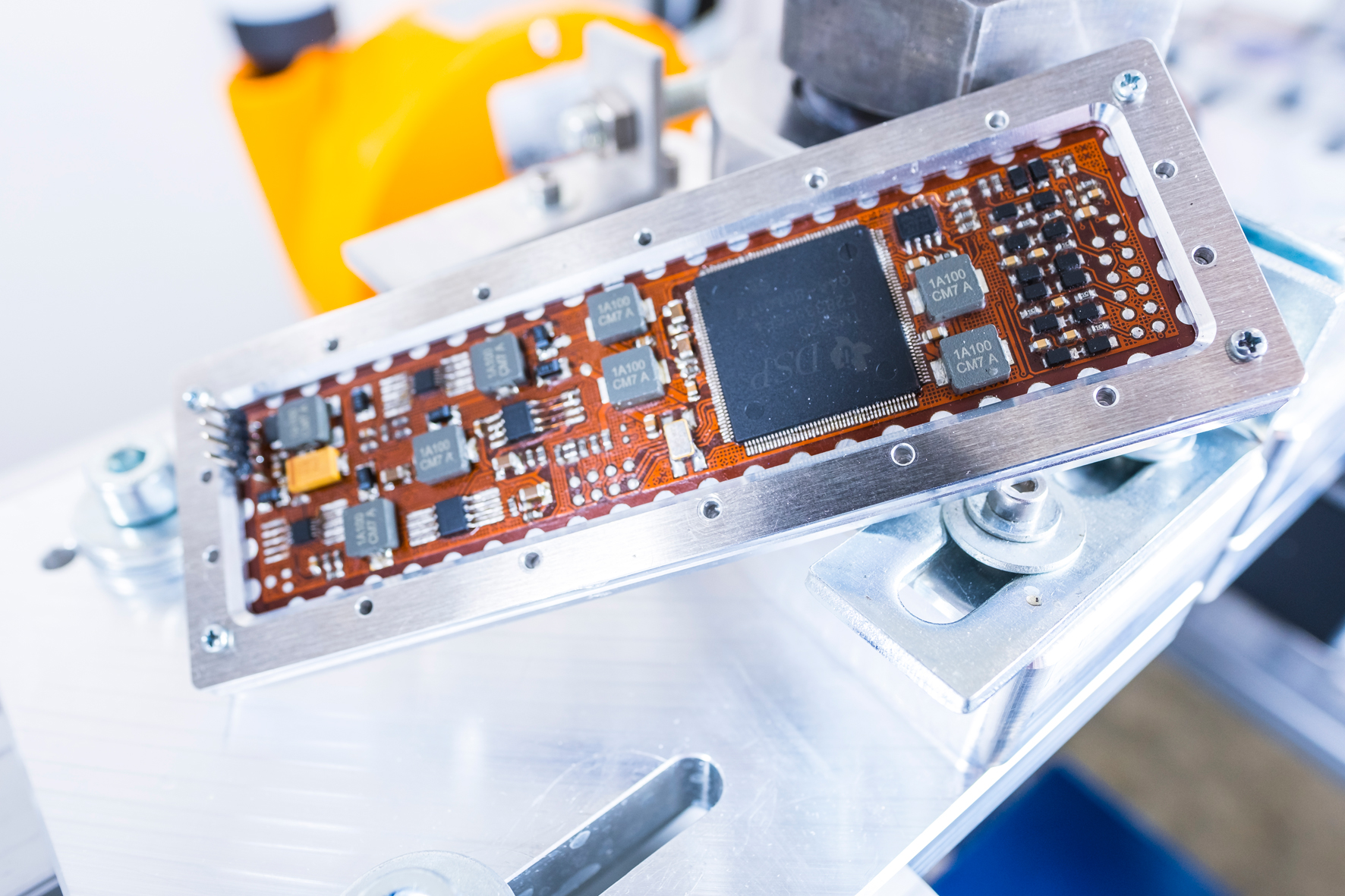

Highly integrated electronic components for use in industrial environments have to withstand extreme pressures or temperatures. In its HE-Lab, Fraunhofer IPM tests the sensors at pressures of up to 2500 bar and temperatures of up to 250°C.

For use in harsh environments, sensors must be particularly robust. Fraunhofer IPM has a specially developed measurement laboratory for the development of such sensors and systems. In the »HE-Lab«, we test materials, individual components and complete systems under extreme conditions on behalf of our customers, e.g. under water at temperatures of up to 250°C and pressures of up to 2500 bar.

In gas atmospheres, tests up to 200 bar and 200°C can be carried out. We offer adjustable atmospheres with a hydrogen content of up to 100 %.

In most cases, sensor systems can also be read out online under these conditions in order to detect failures time-resolved. We have various measurement methods such as micro-CT or electron microscopy at our disposal to determine the causes of the failure.

You are developing sensors that have to function under extreme conditions? Then take advantage of our highly specialized measuring station and our know-how in sensor development. Please feel free to contact us.
