Sustainable agriculture

Agricultural engineering is facing ever greater challenges, also in Germany, due to growing demands for the protection of the environment and for sustainability, while land and fossil resources are limited. Optimized processes are indispensable to master these challenges successfully. This is why industrialization has also had a strong impact on agricultural engineering in recent decades. Digitalization, automation and electrification of agricultural processes offer numerous starting points for resolving the conflict between sustainability and productivity. By understanding the interrelationships in the biosphere, productivity can be significantly increased through optimized processes based on comprehensive data. At the same time, sustainability shall be achieved by highly automated part-crop or plant-specific field cultivation with electrified attachment technology.

Fraunhofer IPM promotes the development of new and improved sensors especially for agricultural use. The focus is on the emission of greenhouse gases such as ammonia (NH3), carbon dioxide (CO2), methane (CH4), and nitrous oxide (N2O) from agricultural land. Fo this end, we have developed a laser absorption spectrometer with special evaluation software and adapted gas sampling.

Field research: Robust spectrometer measures nitrous oxide emissions

© Fraunhofer IPM

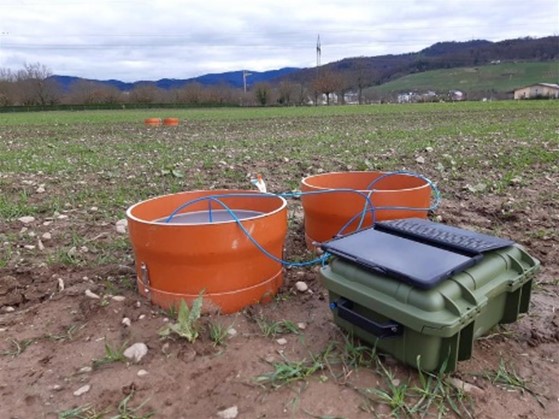

Das laserbasierte Gasmesssystem ist in einem tragbaren Koffer untergebracht. Die Gasflüsse in den Messkammern geben Aufschluss über Bodenaktivität und Düngewirkung.

Depot fertilization releases significantly less greenhouse gases

Although nitrogen fertilizers help farmers to achieve high yields, these good harvests come at a cost. Nitrogen fertilization produces ammonia (NH3), which is harmful to both health and the environment, as well as the greenhouse gas nitrous oxide (N2O). On top of that, increasing energy and raw material prices are driving up the cost of fertilizers. This means that in the future fertilizers should be applied specifically near the roots instead of being poured out indiscriminately as they are currently.

Gas concentration measurements enable efficient use of fertilizer

Specialist companies like RAUCH Landmaschinenfabrik GmbH, our partner in the ESKILA project, are working on techniques for a fertilization method known as depot fertilization, where long-term nitrogen fertilizers are injected into deeper layers of soil selectively or via trenches in the soil. This method releases significantly fewer greenhouse gas emissions than the extensive spreading of fertilizer. A mobile photoacoustic spectrometer that we are developing as part of the ESKILA project is particularly suitable for measuring the concentration of nitrous oxide released during depot fertilization and therefore helps fertilizer to be applied efficiently. A series of field tests were performed to compare various fertilization strategies on different parcels of land being used to grow typical varieties of crop. Data will be collected and evaluated at up to 60 measuring sites per fertilization period until the end of the project in fall 2025.

Mobile low-energy system – for use directly in the field

The laser-based gas measurement system measures the N2O concentration using photoacoustic spectroscopy in the ppb range directly in the field without the need for any samples to be prepared and within a matter of seconds. Building on a demonstrator designed during Fraunhofer’s »Cognitive Agriculture« lighthouse project, the team developed a cost-effective and robust measurement system, which – thanks to its novel interband cascade laser – has very low power requirements so it can be used as a mobile device when operated in battery mode. Measuring chambers have been placed in specific locations in the test areas and the mobile gas measurement system is gathering data from each of these sites multiple times in accordance with a predetermined plan. The increase in the concentration of N2O over a few minutes is recorded each time measurements are taken and the gas flow at the site is then calculated over the course of the measurement.

Further information

»ESKILA« project

How do different fertilizer combinations and application techniques differ in terms of greenhouse gas emissions?

We are investigating this question in the invest BW-funded ESKILA project.
