Gas leak detection

More safety – Less environmental impact

The infrastructure for transporting and storing natural gas and hydrogen is being continuously expanded and modernized. Today, the German natural gas network covers a length of nearly 600,000 kilometers. Legal requirements regarding the tightness of the gas infrastructure are increasing. In addition to safety, the environmental impact of unnecessary gas emissions has a growing importance for the high demands made on the tightness of the gas network. This also applies to industrial sectors such as the oil, petrochemical and gas industries. Just like gas network operators, they also need effective measuring systems for leak detection, which allow reliable and sensitive remote detection of natural gas or certain process gases

Leakage measurement systems for remote detection – handheld or on mobile platforms

Fraunhofer IPM is developing sensitive and convenient measurement technology for the quantitative leakage testing of gas infrastructure. The easy-to-use measuring devices facilitate efficient and reliable leakage testing or the location of leaks. Our leakage measuring systems for remote detection are used as hand-held systems, but also on mobile platforms such as vehicles or drones.

In the development of our gas-specific leakage measurement systems, we work with lasers of all wavelength ranges. In addition to the detection of methane in the natural gas network, the devices can thus also be used for gas detection in industrial production processes: For example in the packaging and food industry, where it is necessary to monitor the inert gas atmosphere for food storage or packaging.

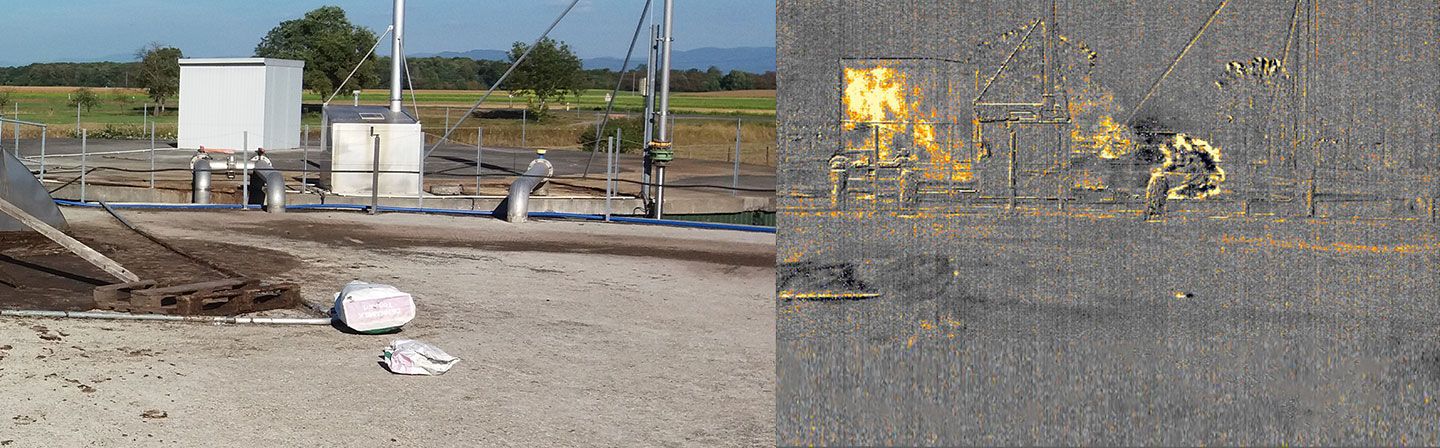

Thermal imaging cameras make gas visible

We are conduction research on imaging gas cameras in which optics and image processing are adapted to the respective measuring task. In the development of gas-specific cameras, we draw on extensive experience with measuring systems based on laser spectroscopy, evaluation models and the use of thermographic cameras.

Our leak detection systems



Measurement system for inspecting the natural gas grid

Efficient – precise – cost-effective

Gas network operators must closely monitor their infrastructure for leaks.

Fraunhofer IPM developed a measurement system for vehicle-based leak detection that measures methane emissions sensitively and quickly from the moving vehicle.



Laser spectrometer for ammonia detection

Protection of people and the environment

Hydrogen can be transported and stored in the form of ammonia. To ensure a gas-tight infrastructure, the ammonia concentration in the air must be monitored.

The handheld laser spectrometer from Fraunhofer IPM inspects pipes or tanks from a safe distance of up to 50 meters.



Sensor for locating gas-explosive areas

Reducing the risk for rescue workers

Earthquakes and building collapses very often also cause damage to gas pipes. This increases the risk of serious gas explosions.

Mounted on a drone, the Fraunhofer IPM laser spectrometer detects leaking gases and warns rescue workers of potentially explosive areas.
